GASKETS FOR NBZ-2.7 ELECTROLYZE
Anode gasket for NBZ-2.7 electrolyzer
Anode gasket size: 2415x1215
Thickness 2.6 mm (PTFE)
Width of the gasket sides:
upper part 29.8 mm,
right and left and lower part 34.7 mm
Material: EPDM Maximum required voltage 580 V
Current 16.2 kAx3 of the system
Current density 6.0 kA/m2
Active cell area 2.7 m2
Electrolyzer temperature 85-90 °C
Input brine concentration 300-305 g/dm3
Output brine concentration 205-215 g/dm3
Input sodium hydroxide concentration 29-29.5%
Output sodium hydroxide concentration 31-32%
CATHODE GASKET BRAND NBZ-2.7
Size of the cathode gasket: 2410x1210
Thickness 3.1 mm
Width of the sides of the gasket 35.4 mm
Material: EPDM
Maximum required voltage 580 V
Current 16.2 kAx3 of the system
Current density 6.0 kA/m2
Active cell area 2.7 m2
Electrolyzer temperature 85-90 ° C
Input brine concentration 300-305 g / dm3
Output brine concentration 205-215 g / dm3
Input sodium hydroxide concentration 29-29.5%
Output sodium hydroxide concentration 31-32 %
EXTREME ANODE GASKET BRAND NBZ-2.7
Size of extreme anode gasket: 2415x1215
Thickness 3.5 mm (PTFE)
Width of the sides of the gasket:
top part 29.8 mm
right and left and bottom part 34.7 mm
Material: EPDM
Maximum required voltage 580 V
Current 16.2 kAx3 systems
Current density 6.0 kA / m2
Active area of the cell 2.7 m2
Temperature of the electrolyzer 85-90 ° C
Input concentration of brine 300-305 g / dm3
Output concentration of brine 205-215 g / dm3
Input concentration of sodium hydroxide 29-29.5%
Output concentration of sodium hydroxide 31-32 %
EXTREME CATHODE PAD BRAND NBZ-2.7
Size of the outer cathode pad: 2410x1210
Thickness 4.5 mm
Width of the pad sides 35.4 mm
Material: EPDM
Maximum required voltage 580 V
Current 16.2 kAx3 of the system
Current density 6.0 kA/m2
Active cell area 2.7 m2
Electrolyzer temperature 85-90 ° C
Input brine concentration 300-305 g/dm3
Output brine concentration 205-215 g/dm3
Input sodium hydroxide concentration 29-29.5%
Output sodium hydroxide concentration 31-32 %

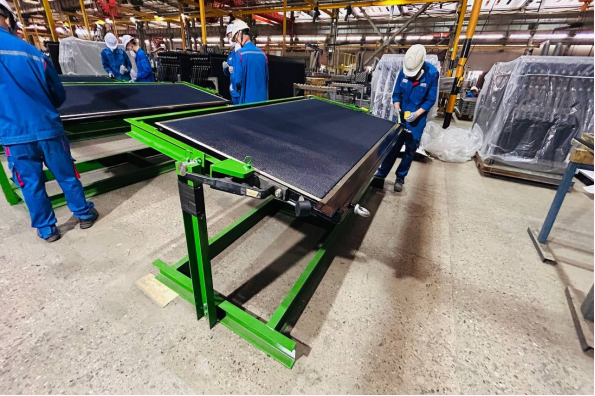

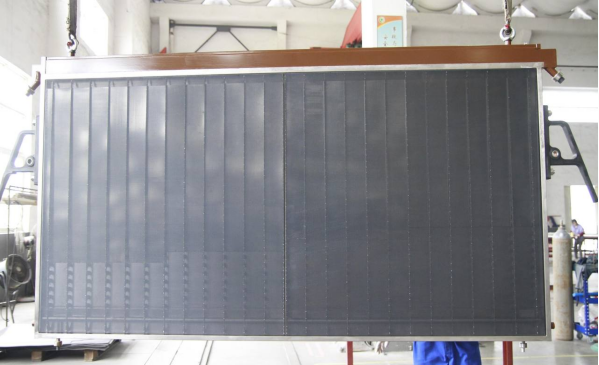

1. CELLS FOR ELECTROLYZER NBZ 2.7
Intermediate cell for electrolyzers NBZ 2.7 | |
Maximum required voltage | 580V |
Current | 16.2 kAh3 systems |
Cell size | 1289*2400mm |
The active zone of the electrolyzer | 2.7m2 |
Operating current | 14.85 kA ( 5.5 kA/m2) |
Material of product | Ti/304/Ni/Ti-Pd |
The last anode cell of the NBZ 2.7 electrolyzer | |
Maximum required voltage | 580V |
Current | 16.2 kAh3 системы |
Cells size | 1289x2400mm |
The active zone of the electrolyzer | 2.7m2 |
Operating current | 14.85 kA ( 5.5 kA/m2) |
Material of product | Ti/304/Ti-Pd |
The last cathode cell for electrolyzers NBZ 2.7
| |
Maximum required voltage
| 580 V |
Current | 16.2 kAh3 systems
|
Cells size | 1289x2400 mm
|
The active zone of the electrolyzer | 2.7 m2
|
Operating current | 14.85 kA (5.5 kA/m2)
|
Material of product | 304/Ni
|
Cell operating conditions
Input concentration of brine 305-5 g/l
Output concentration of brine 200-220 g/l
Input concentration of sodium hydroxide 29-29.5 g/dm3
Output concentration of sodium hydroxide 31-32 g/dm3
Electrolyzer temperature 85-90°С

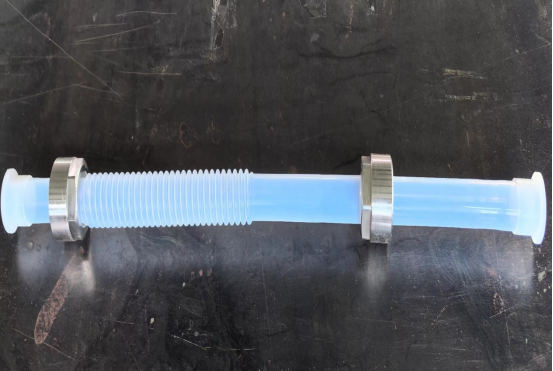

CORRUGATED TUBES OF ELECTROLYZERS NBZ2.7 (II)
Corrugated tubes are designed to drain alkali and weak brine
Material - Perfluoroalkoxide polymer (PFA), stainless steel nut
Dimensions - Corrugated tubing hose Ø31.5mm L ≈800
Sizes Resby nuts pitch 3.0, M47 thread
Operating current 14.85 kA (5.5 kA/m2)
Inlet temperature of brine 305-5 g/l
Output concentration of brine 200-220 g/l
Warranty period 20 months
GASKETS FOR CORRUGATED TUBES OF THE NBZ-2.7 ELECTROLYZER
Purpose - Gaskets for corrugated tubes of the NBZ-2.7 electrolyzer
are designed for tightness of the nut, corrugated tubes
Material - EPDM
Dimensions 44x31x5mm
Maximum operating current 16.2 kA (6.0 kA /m2)
Electrolyzer temperature 85-90°C
Input concentration of brine 305-5 g/l
Output concentration of brine 200-200 g/l
A solution of caustic sodium with a mass
concentration of sodium hydroxide (29-32) %
HVM MEMBRANES
HVM membrane for the production of caustic soda, chlorine and chlorine products
Terms of Use:
Operated to retain insoluble CaCo3 impurities in saline
solution, maximum operating pressure 0.003 MPa,
temperature 60-66 degrees
Full Teflon/titanium/rubber and plastic membrane - pieces B150/1600-Z
Length 1500mm
Effective filtration length 1400mm
Filtration area per set 0.681 m2 (0.0757 m2 x 9)
Maximum pressure ≤ 0.15 Mpa
Average temperature 60-66°C
Serial number HFS201600101
Relative air humidity 26-96%
The main purpose of the product is Filtration of NaCl-saturated brine
